Wholesale Curtain Tracks for Custom Curtain Programs
Buy curtain tracks as a standalone wholesale hardware line, or add matched tracks, runners, brackets, and accessories to Dairui blackout, sheer, linen, velvet, hotel, or OEM curtain orders.
Select tracks for bulk resale, projects, or curtain-package orders.
A good wholesale track order is not only a rail. Every track is supplied as a complete set: profile, runners, brackets, end covers and connectors, with fabric tape and accessory quantities matched to the curtain style.

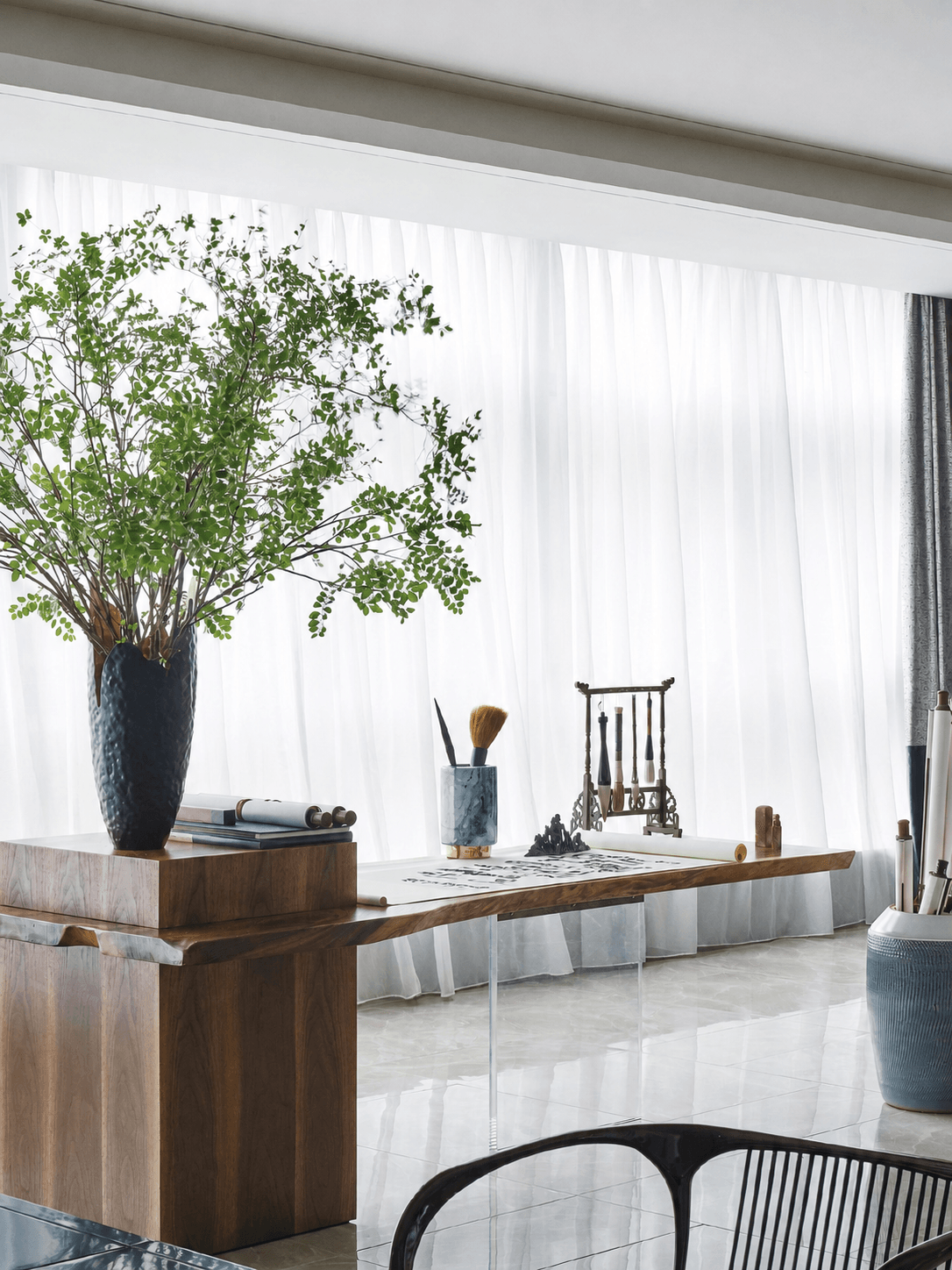

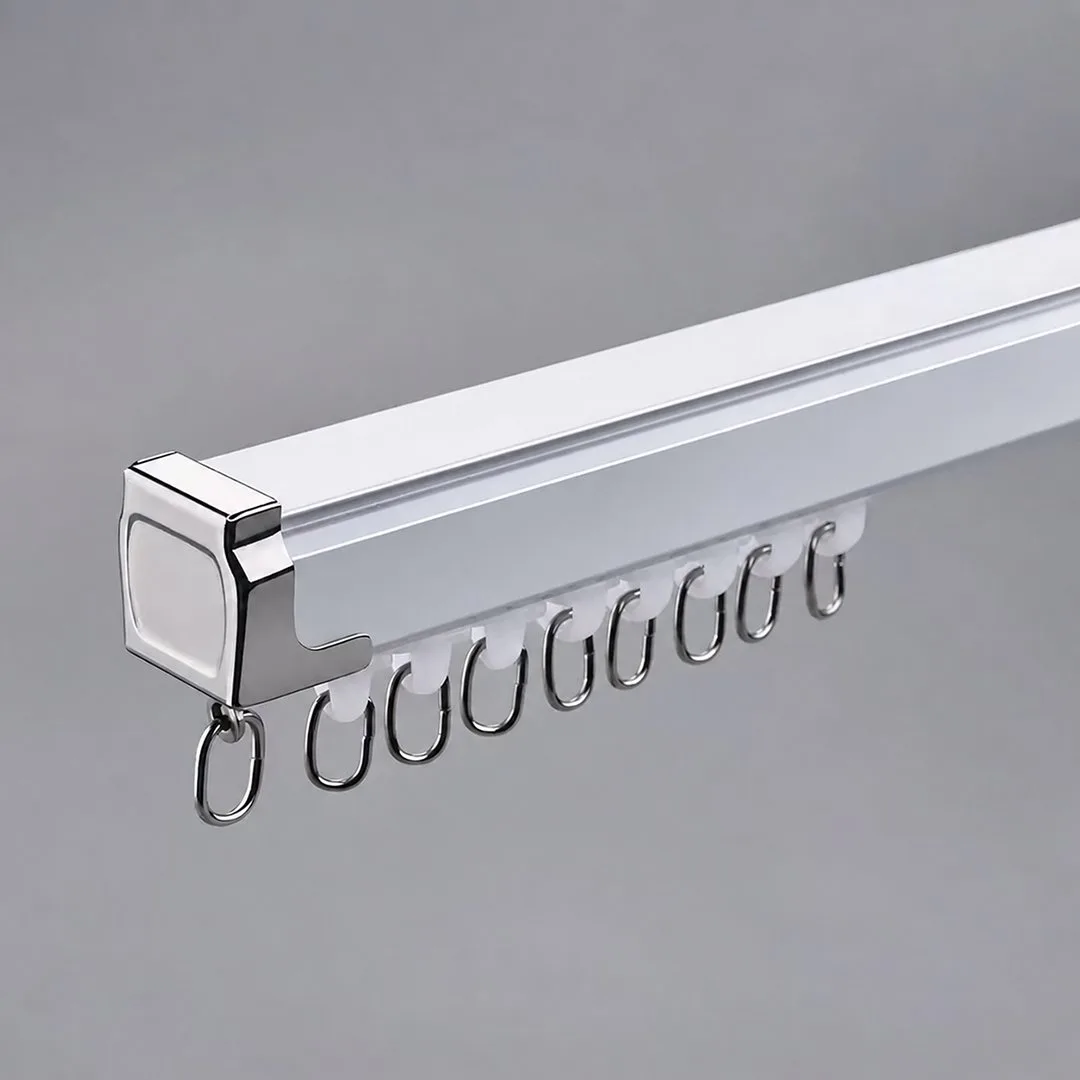

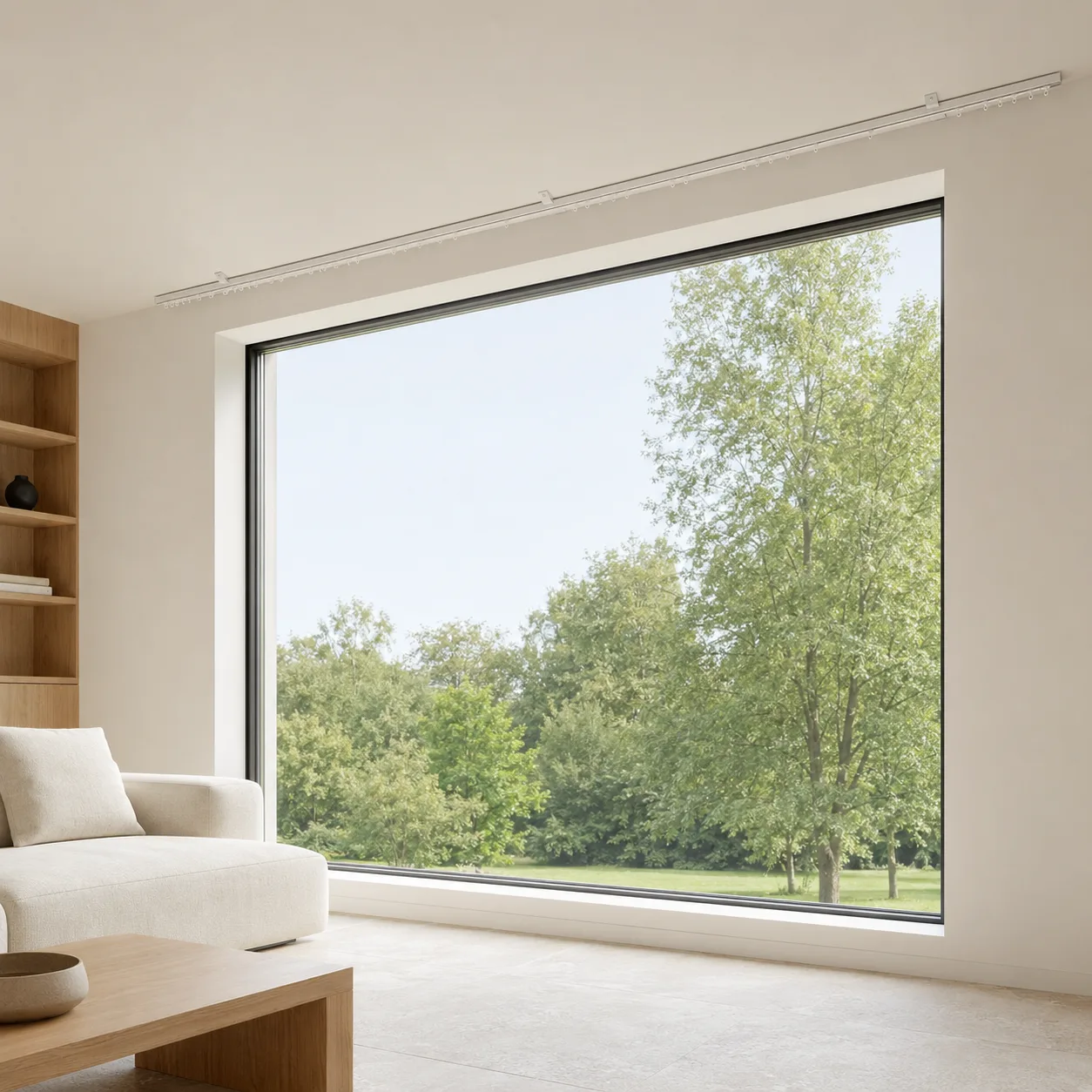

Straight Manual Curtain Tracks
Our best-selling line. Silent straight aluminium tracks for importers, wholesalers, apartments, hotels, and finished curtain programs, in single or double track.

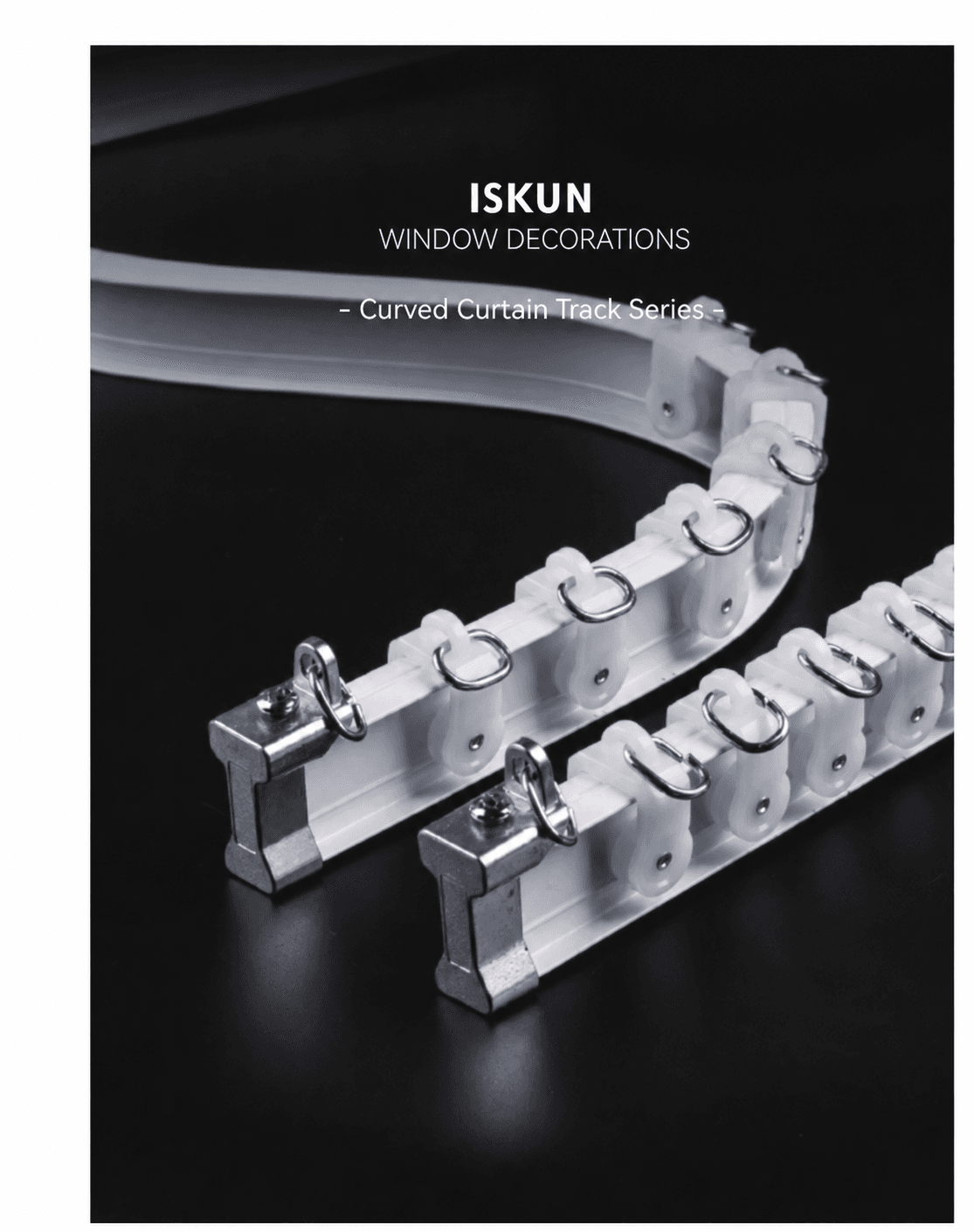

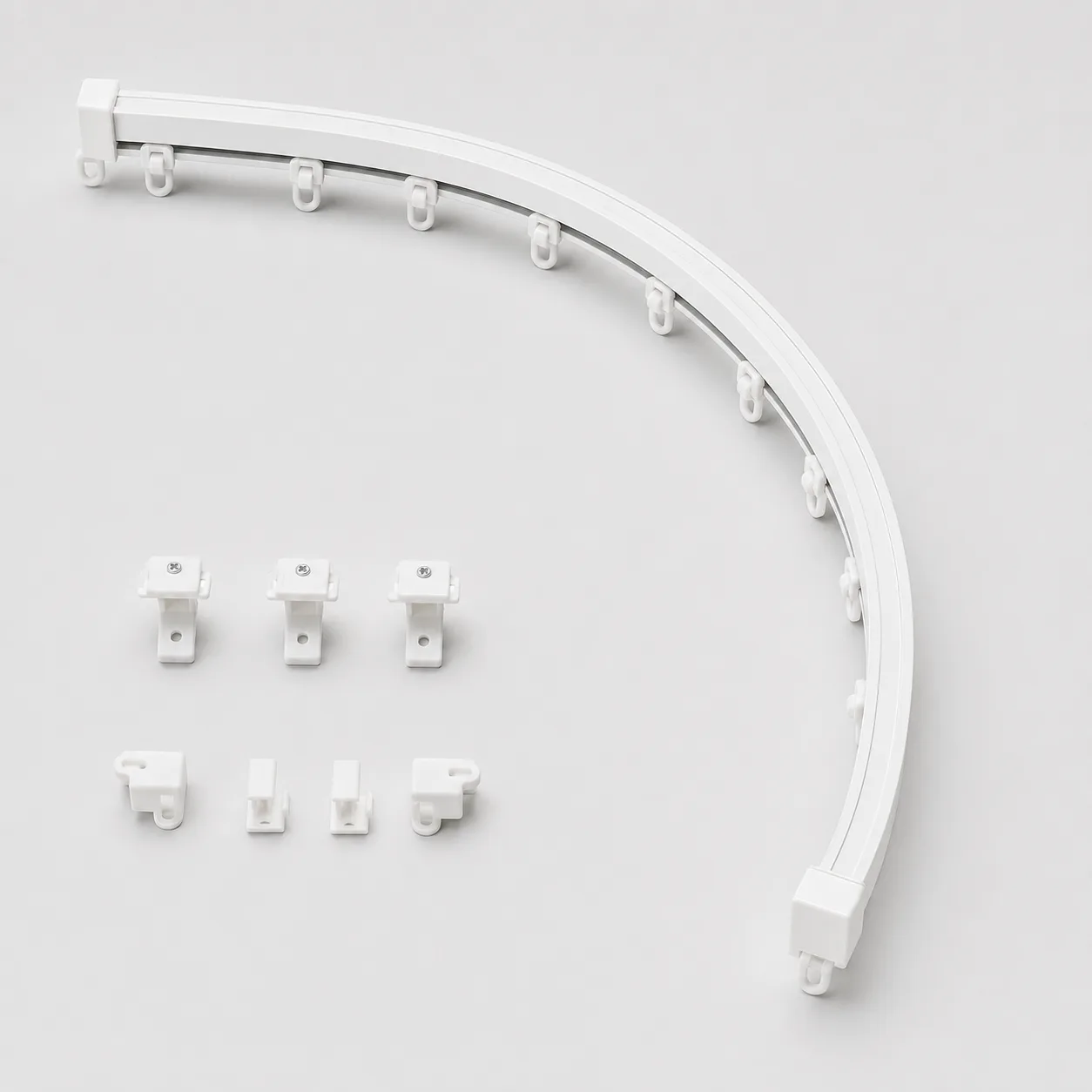

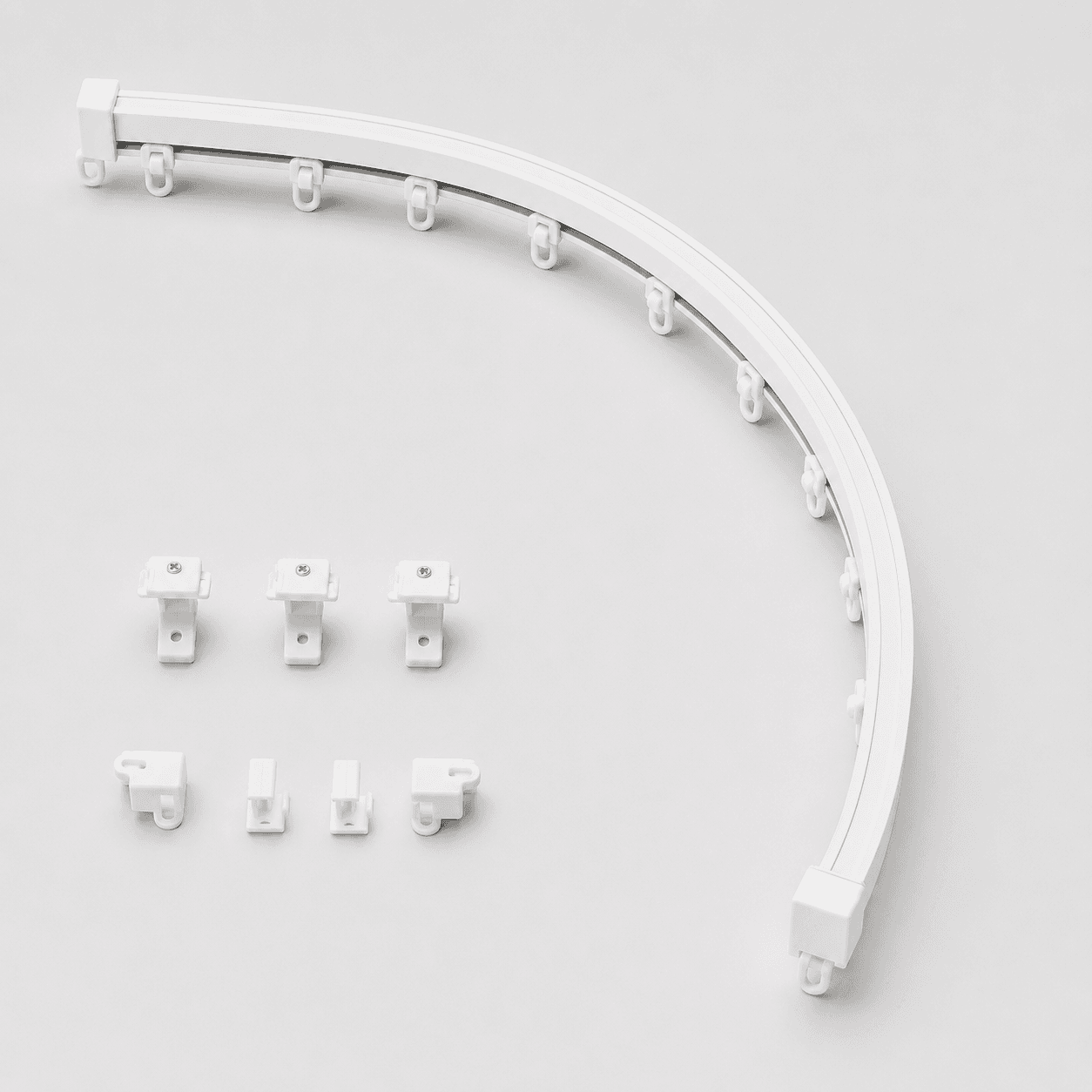

Curved and Bendable Tracks
For custom curtain orders with bay windows, L-shaped windows, U-shaped windows, room dividers, or other non-standard layouts.

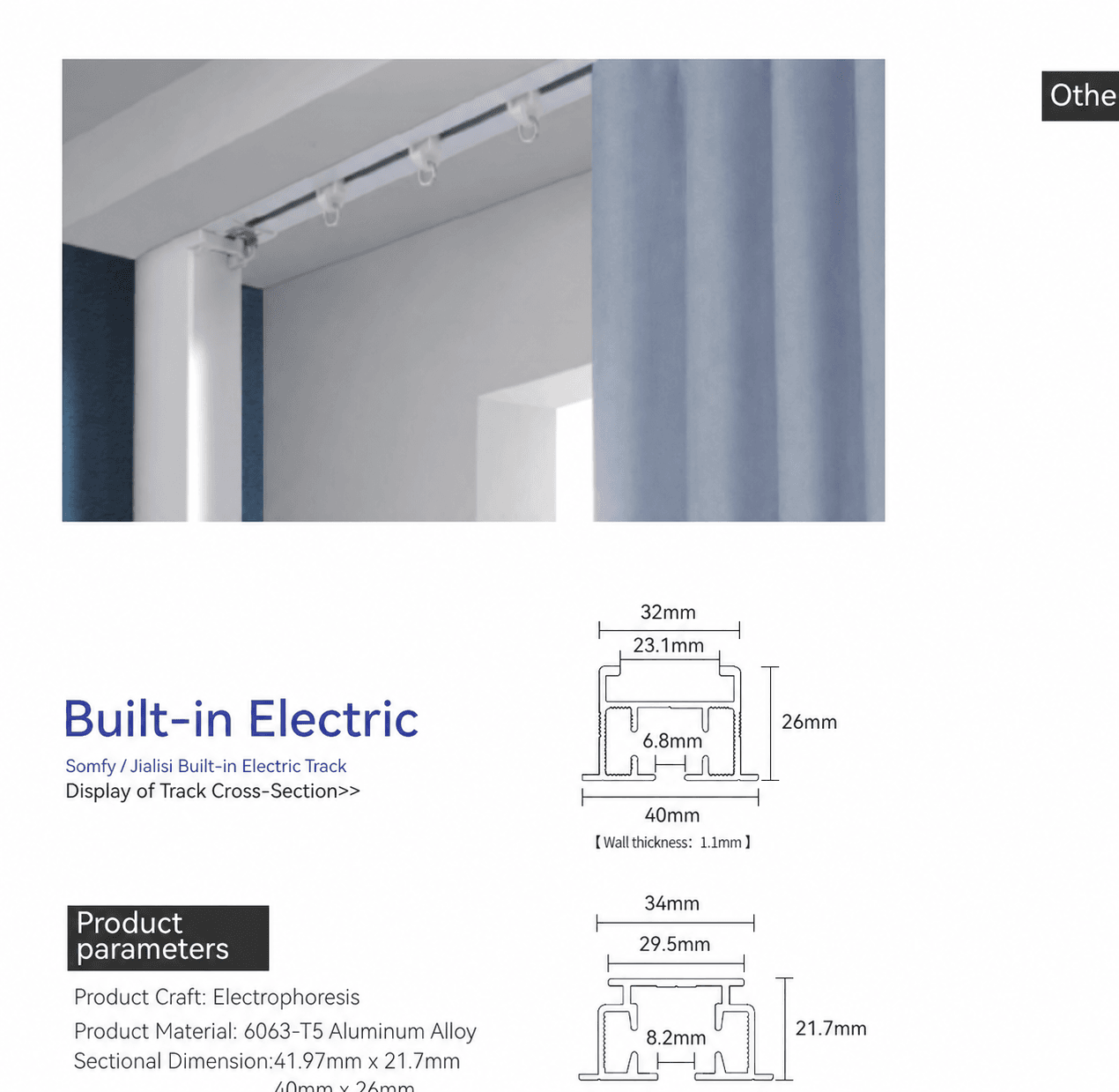

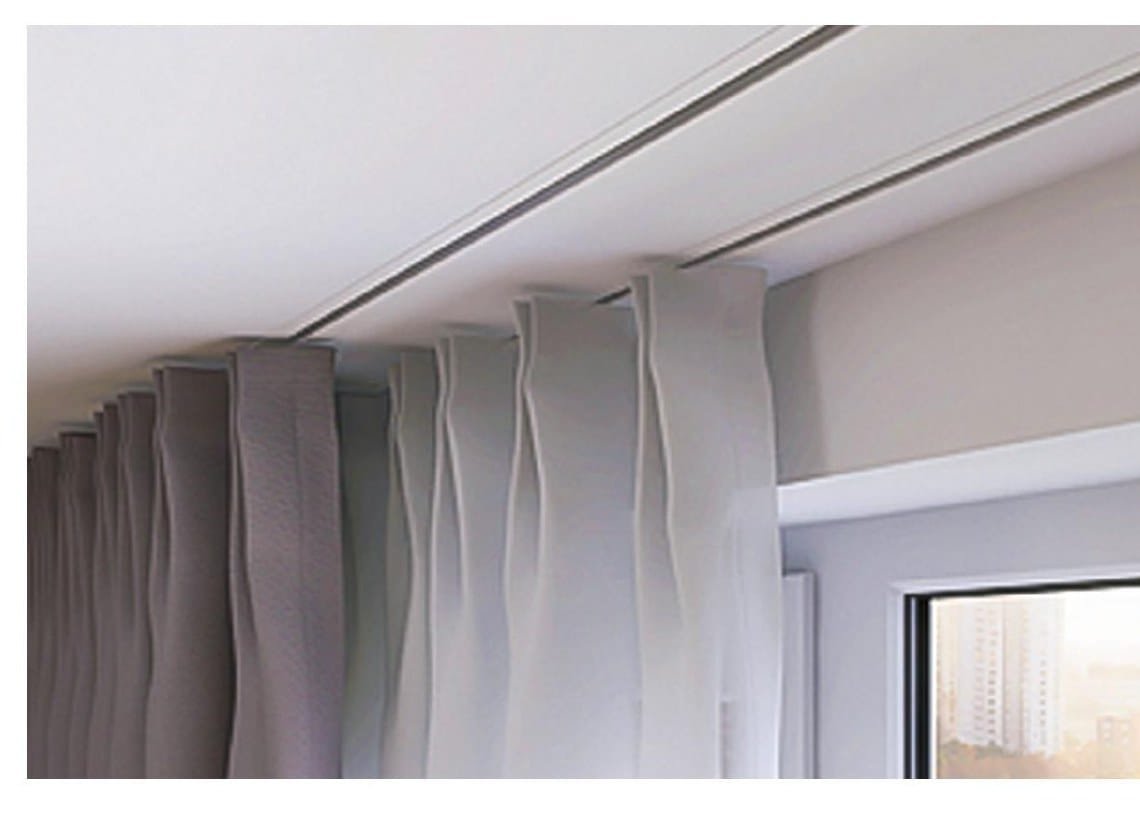

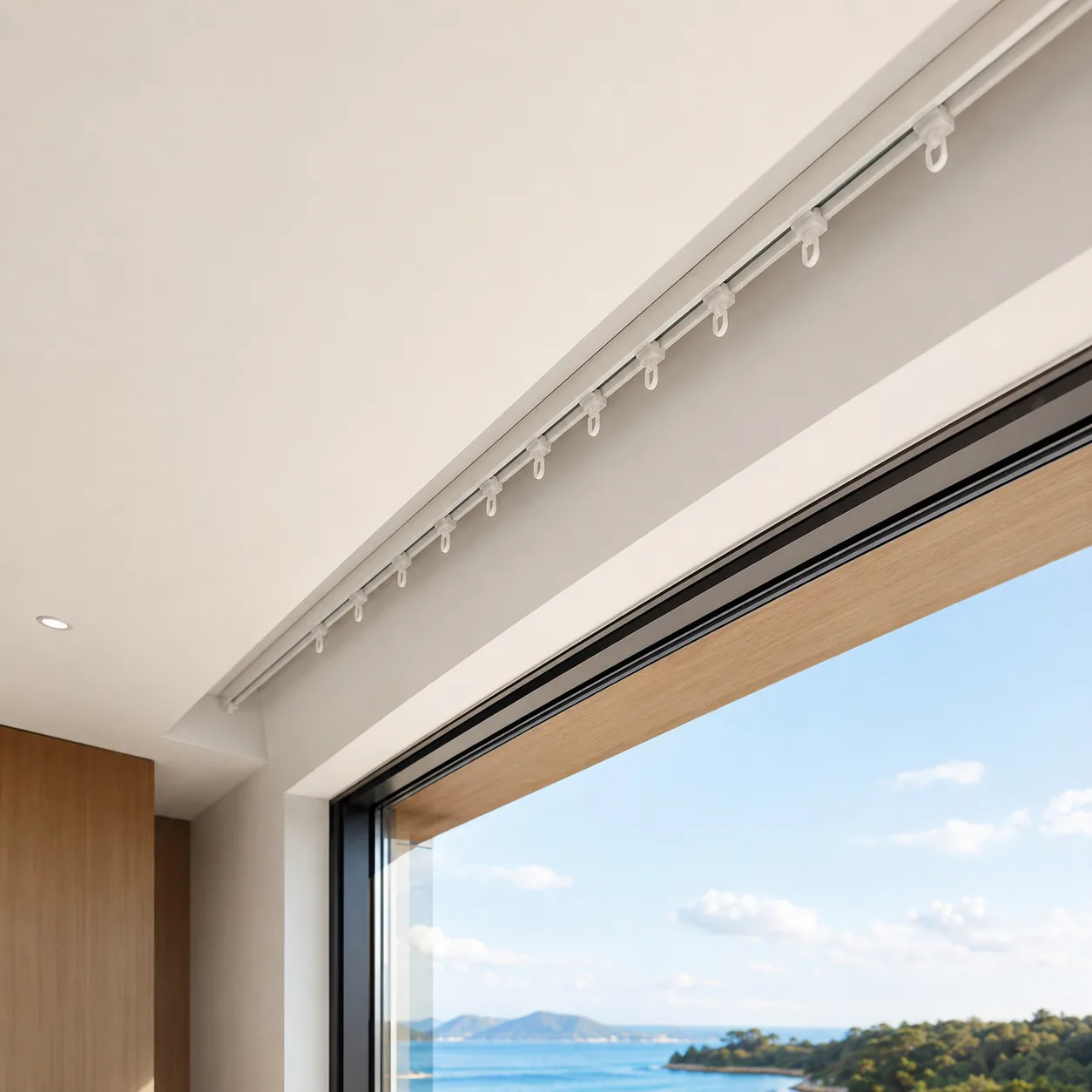

Hidden and Built-in Tracks
For curtain boxes, ceiling recesses, villas, hotels, and interior projects where the rail should disappear after installation.

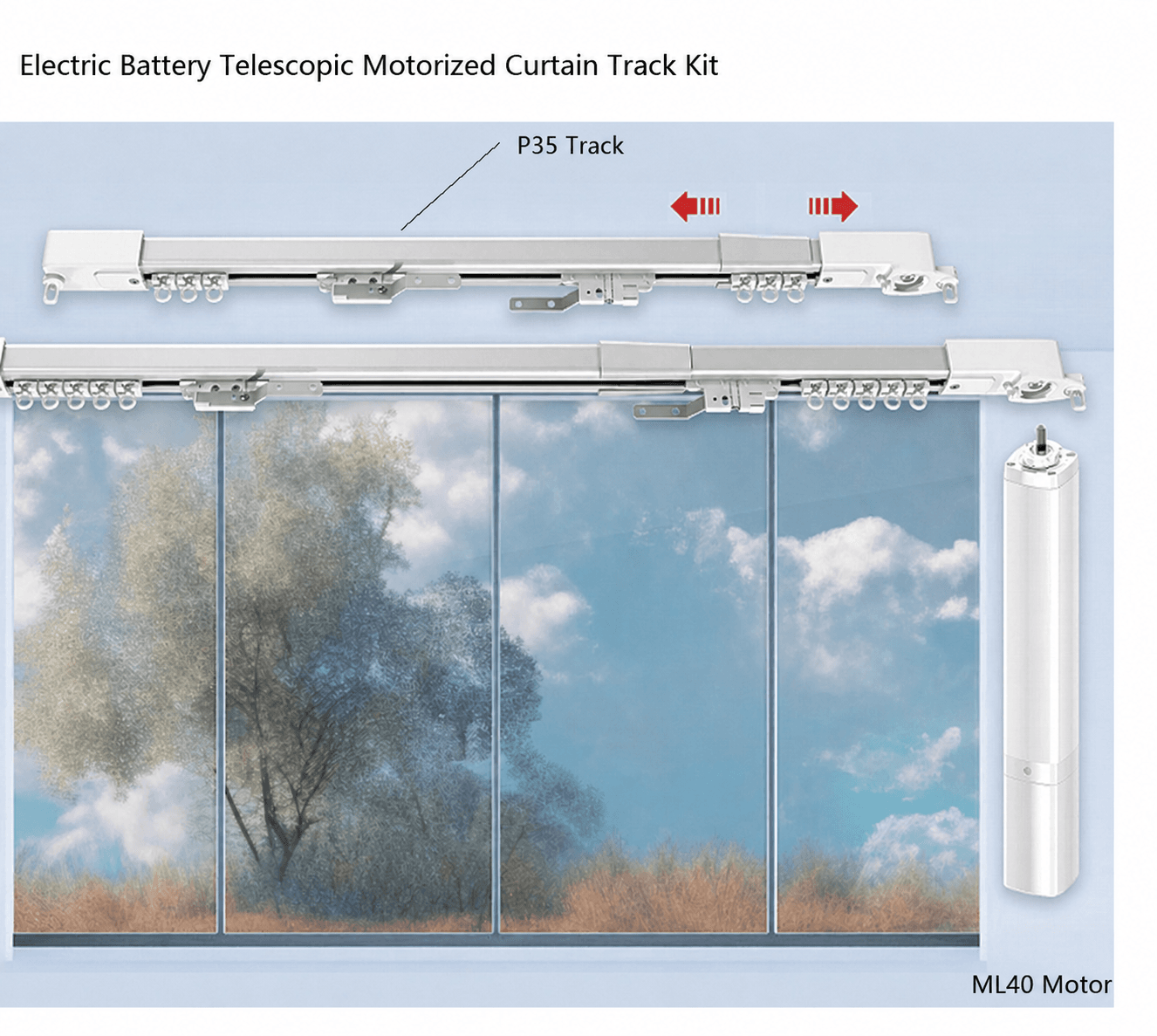

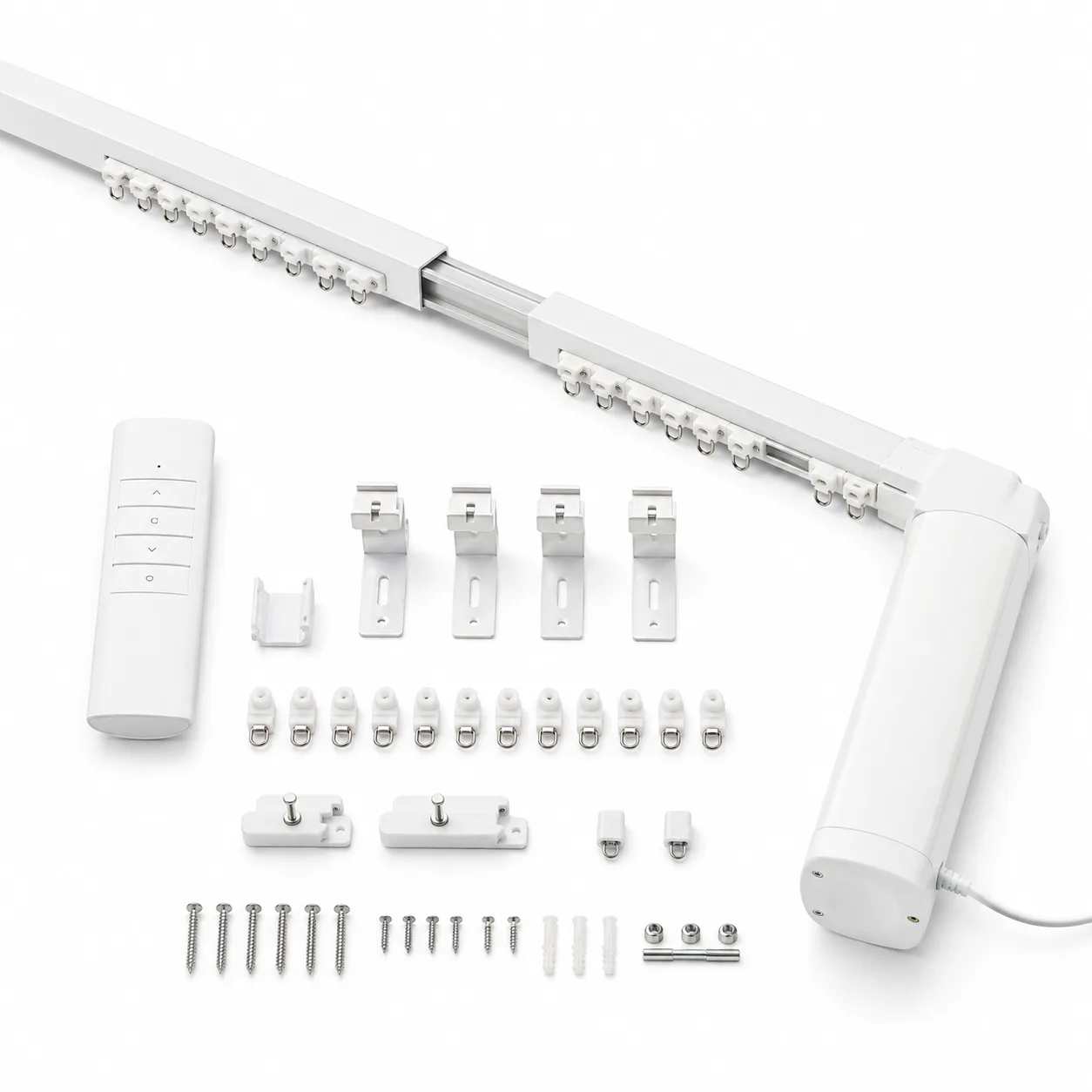

Telescopic Track Kits
Adjustable systems for retail kits, stock programs, small projects, and distributors who want fewer fixed-length SKUs. Manual kits as standard, with motorised versions available; mounting hardware is supplied in the kit.

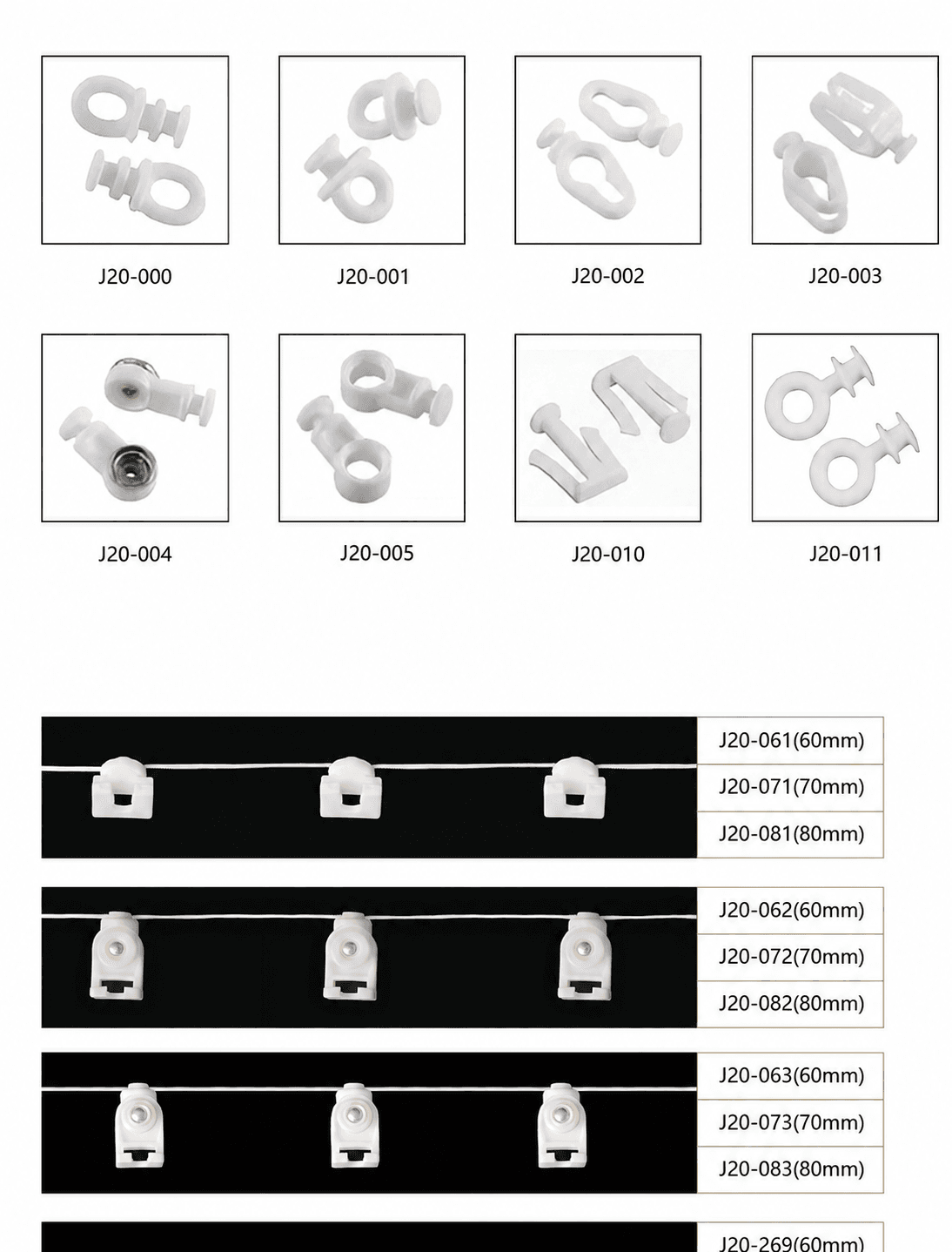

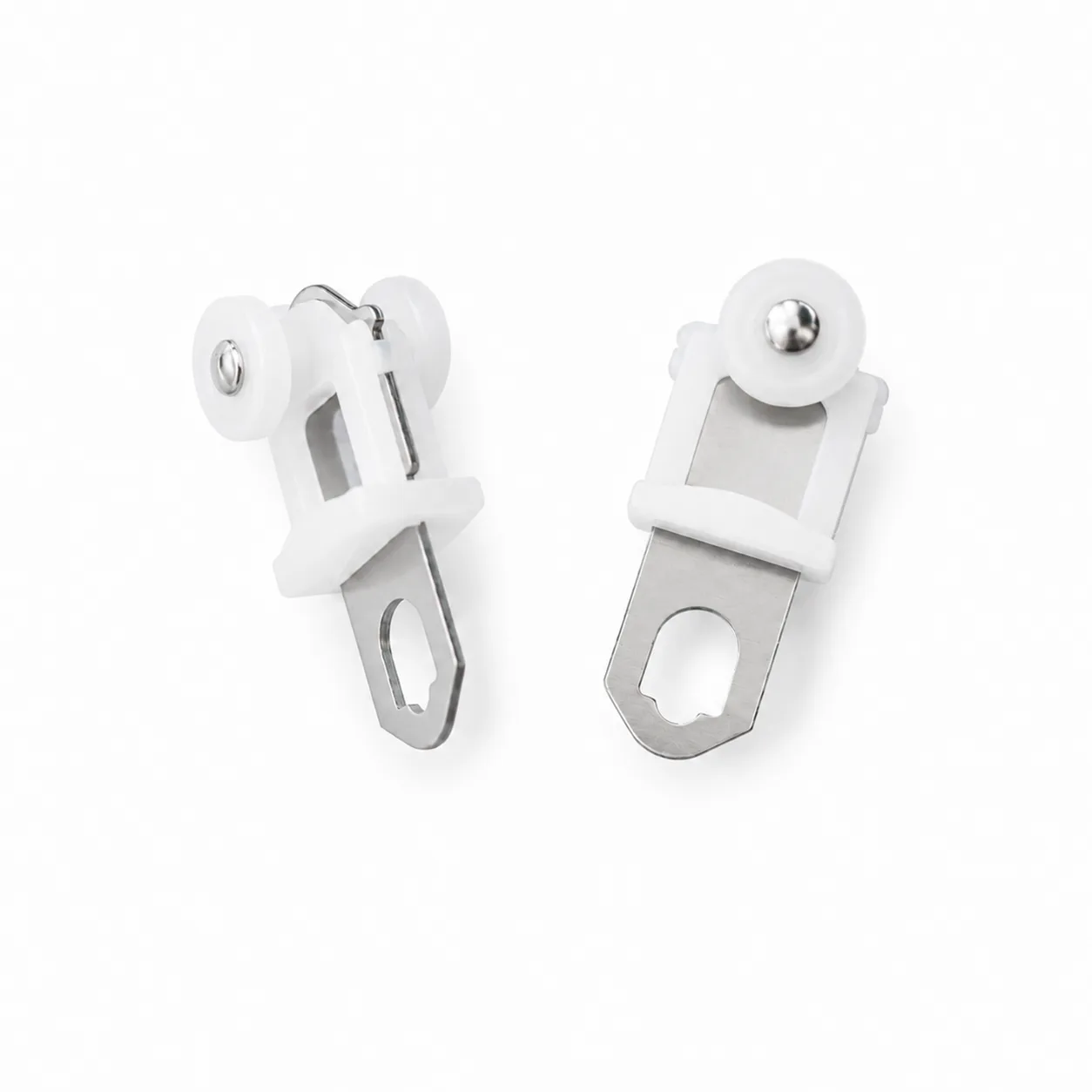

Accessories and Spare Parts
Accessory sets for track wholesalers and curtain buyers: runners, hooks, brackets, connectors, covers, cord weights and tapes, plus valance rails, soft joints for straight-to-curved runs, end bumpers and stoppers.

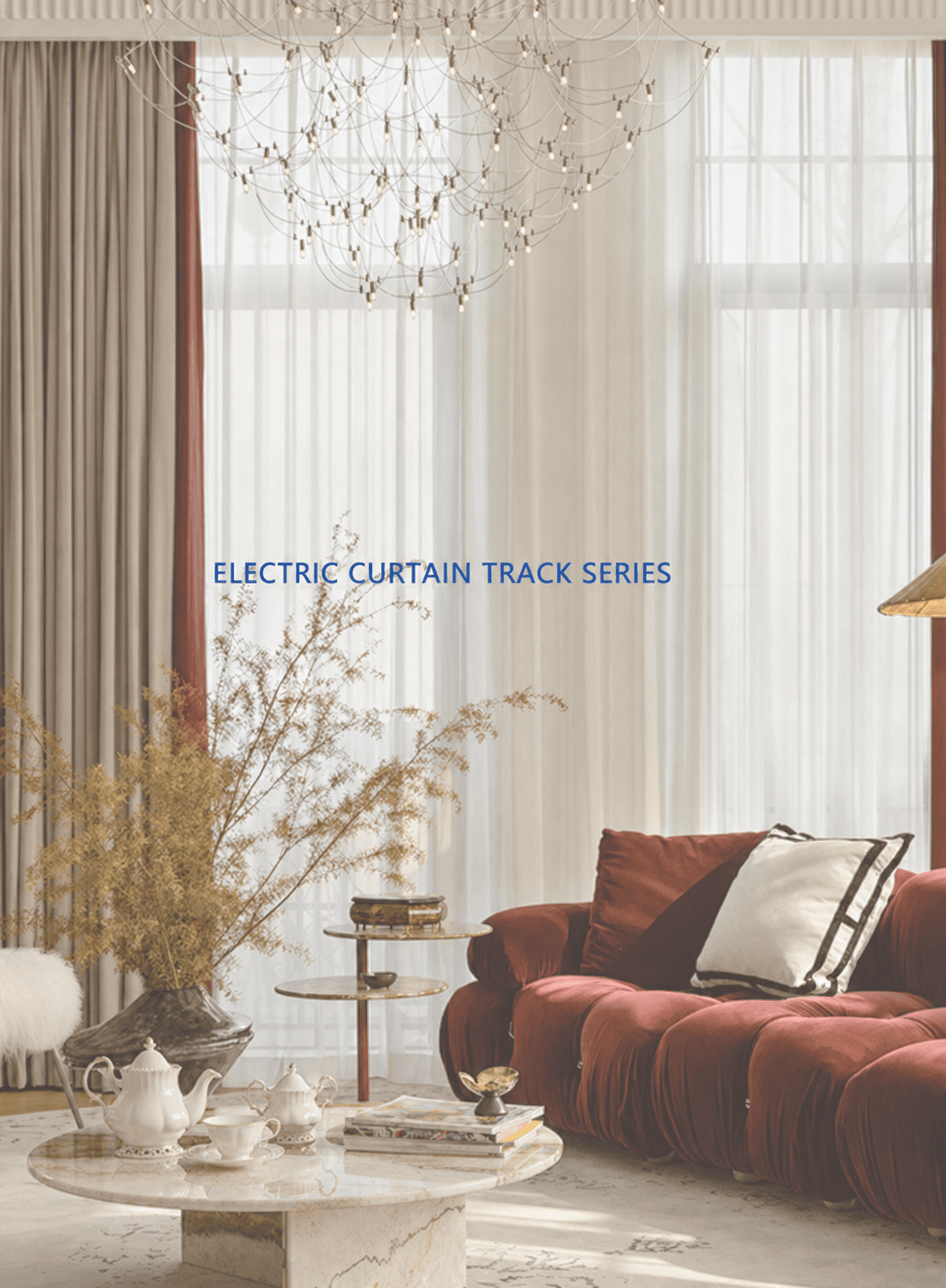

Electric Curtain Tracks
Motorized track systems for hotel, apartment, villa, and premium curtain packages, with motor, belt, carriers, brackets, and remotes.
Single or double track: overseas orders mostly use one or the other. A curtain and sheer pair can share a double track or run on two single tracks, depending on the window — see double-layer sheer and blackout systems.
Curtain rods, extendable rods and tension rods for window recesses and shower curtains are also supplied on request.
Track profiles held in stock.
Four aluminium profiles, from slim residential rails to heavy-duty project track. Section size and wall thickness are listed so you can check them against your own drawings.
| Profile | Material | Section size | Wall thickness | Standard length | Finish and colour | Mounting | Suited to |
|---|---|---|---|---|---|---|---|
| Standard rail Mainstream manual | Aluminium alloy | 19.5 × 11 mm | 1.0 – 1.2 mm | Confirmed per order | Spray coating, white | Ceiling or wall | Everyday residential rails |
| Slim square rail Low sightline | 6063-T5 aluminium | 10.5 × 22 mm | 0.5 mm | 6.7 m | Spray coating, matte ivory white | Side or top | Slim sightline, residential; optional silencer strip |
| Square rail Top or side fixing | 6063-T5 aluminium | 22 × 20 mm | 0.7 mm | 6.7 m | Electrophoresis, ivory white | Side or top | Flexible installation; built-in silent strip optional |
| Heavy-duty rail Project grade | 6063-T5 aluminium | 27.4 × 27.65 mm | 0.8 mm | 6.7 m | Spray coating, matte white | Side or top | Residential and project use |
Runner count by fullness
| Fullness | Runner spacing | Fabric width on a 3 m track | Runners on a 3 m track |
|---|---|---|---|
| 1.5× Budget projects, rentals | 15 cm | 4.5 m | 30 |
| 1.8× Everyday residential | 12 cm | 5.4 m | 45 |
| 2.0× Standard | 10 cm | 6.0 m | 60 |
| 2.2× and above Hotels, show flats | 9 cm | 6.6 m | 74 |
Runners = track length × fullness ÷ runner spacing, rounded up. Fix one bracket every 50–60 cm.
Motorized track options.
All four motors are held in stock. Curtain box depth and wall-to-wall deduction decide the motor before torque does, so check those two rows first, then match track length and curtain weight.
| Specification | A-OK AM68-1.5/100-EM-P | A-OK AM57-1.2/80-EM-P | DOOYA DT52E75W | DOOYA DT82TN/NA-1.2N |
|---|---|---|---|---|
| Motor total length | 32 cm | 23.5 cm | 23.5 cm | 27.7 cm |
| Min. curtain box depth | ≥ 15 cm | ≥ 10 cm | ≥ 10 cm | ≥ 13 cm |
| Standard wall-to-wall deduction | 5.5 cm | 4 cm | 4 cm | 5 cm |
| Deduction with skirting or protrusion | 6.5 cm | 5 cm | 5 cm | 6 cm |
| Max. track length | 10 m | 6 m | 8 m | 6 m |
| Max. curtain weight | 60 kg | 30 kg | 50 kg | 30 kg |
| Typical application | Extra-long track, heavy blackout curtains | Standard home use, short track | Mainstream home use, long track | Medium to large projects, smart curtain systems |
| Key feature | High load capacity | Compact and practical | Stable performance | Tuya app control, direction reversal |
All four support wireless remote control and obstacle detection. AM68, AM57 and DT52E75W allow manual pull during power failure; DT52E75W adds pull-to-start.
Remotes are 433 MHz with a range of up to 40 m through walls, matched to the motor brand: DOOYA DC2700 / DC2760 or A-OK AC123-01 / AC123-2.
Battery motors for rooms without a power point: DOOYA DT10 and A-OK AM50, the AM50 also in a Tuya Zigbee version; box depth and deduction confirmed per order.

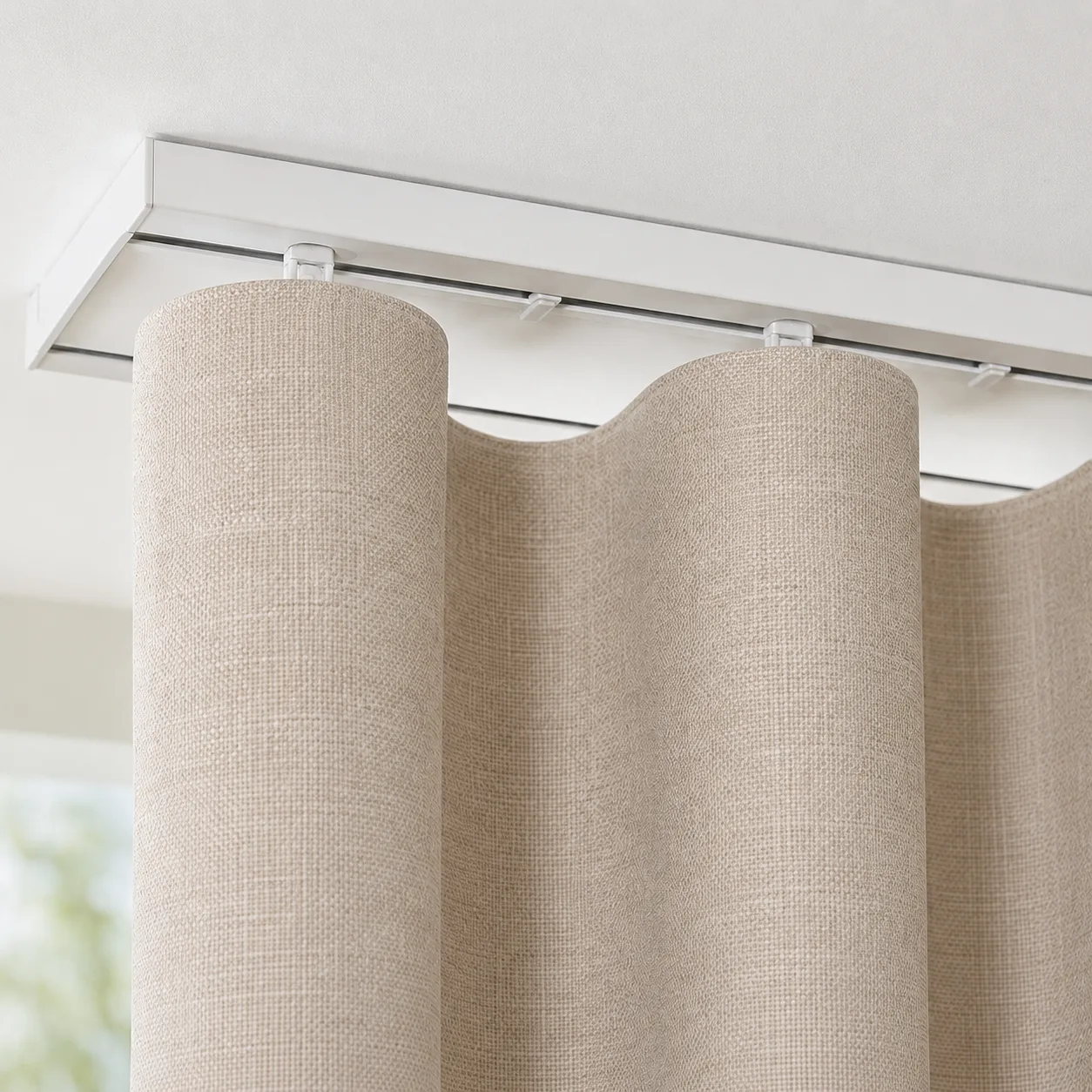

The motor runs on a separate aluminium track in 1.3 mm, 1.6 mm or 2.0 mm wall thickness, supplied in 6 m, 6.3 m and 6.7 m, with an S-fold (wave) version of each.

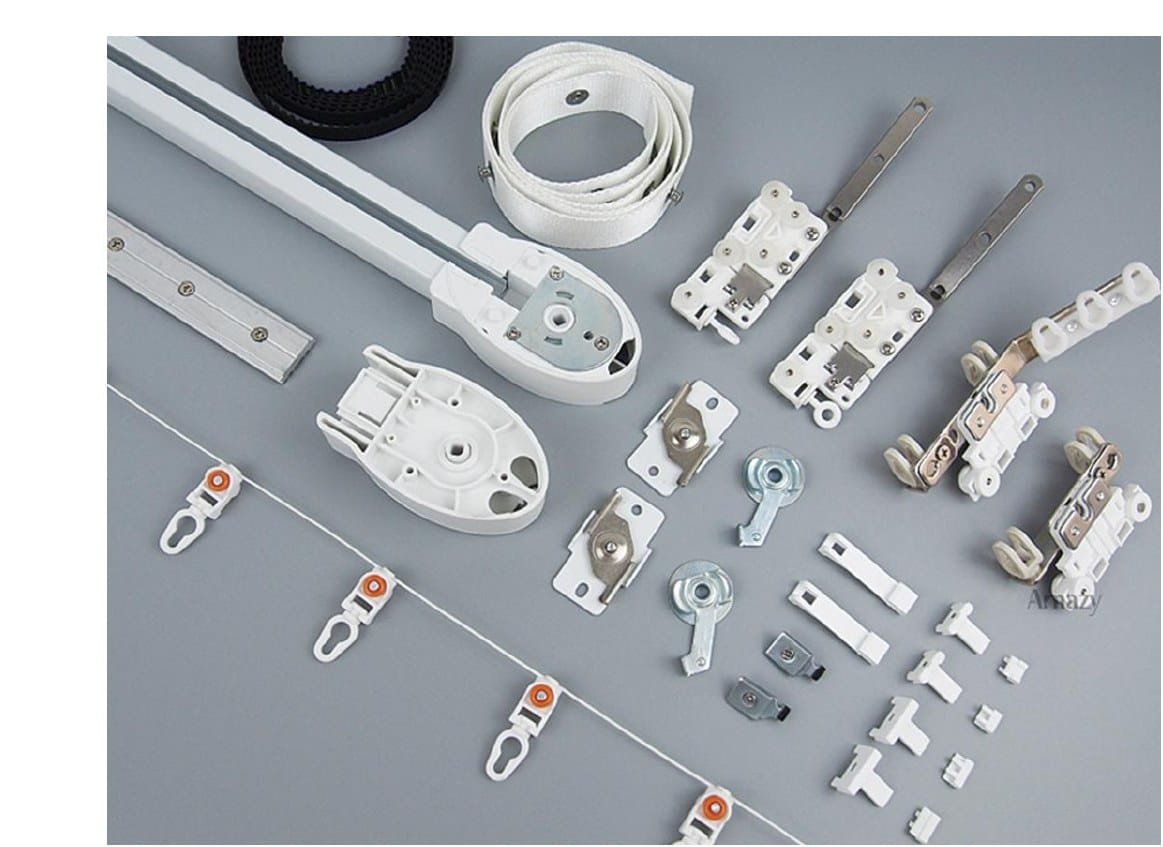

Motorized parts are stocked separately for replacements: drive boxes for the 52, 68 and 82 motors and for ceiling-mounted motors, six-wheel, medium- and heavy-duty carriers, 90° and 135° curved sections, and drive belts. For power, control and approval questions, see the motorized curtain track buying guide.
Plan tracks with the rest of the curtain order.
FAQ for wholesale curtain track buyers.
Which track is best for blackout curtains?
For heavier blackout curtains, choose a stronger aluminum profile, close bracket spacing, smooth runners, and enough side extension for stack-back.
Should a curtain and sheer pair use a double track or two single tracks?
Either works, depending on the window. Overseas orders mostly use single or double tracks. A double track carries both layers on one set of brackets, while two single tracks let each layer be mounted and spaced separately. Send the window width, mounting surface and both fabrics, and the track layout is confirmed before production.
How many runners does a curtain track need?
It depends on fullness. Fabric width = track length × fullness, and runners = fabric width ÷ runner spacing: 15 cm at 1.5×, 12 cm at 1.8×, 10 cm at 2.0× and 9 cm at 2.2×. A 3 m track at 2.0× fullness needs 60 runners. Fix one bracket every 50–60 cm.
What is the minimum order quantity for curtain tracks?
The MOQ is 50 sets per track type. A set is one track cut to length with its runners, brackets and end caps. Spare parts and accessories are quoted separately.
What is the production lead time for track orders?
Sampling takes 3–5 working days, not counting international shipping. Bulk production is about 30 days from the date the deposit is received, and a full 40HQ load runs 35–45 days. Motorized systems, custom lengths and non-standard finishes sit at the longer end of that range. Tell us your target arrival date when you request pricing so the schedule is confirmed before shipping is booked.
Can we order only runners, brackets, or spare parts without tracks?
Yes. Runners, master carriers, hooks, brackets, end covers, connectors, belts, and remotes can be quoted as separate accessory or spare-part orders. This suits project maintenance, replacement programs, and sellers who already stock profiles.
Can private label packaging be supported?
For suitable order quantities, track kits and accessories can be planned with retail packaging, labels, accessory bags, and carton marks for importers or e-commerce sellers.
What does a motorized track need that a manual track does not?
A deeper curtain box and clearance for the motor. Depending on the motor, the box must be 10–15 cm deep: at least 10 cm for the A-OK AM57 and DOOYA DT52E75W, 13 cm for the DOOYA DT82TN and 15 cm for the A-OK AM68. Wall-to-wall tracks need a 4–5.5 cm deduction for the motor, while window-only tracks add side extension instead. Confirm the motor before the curtain box is built.
Ready to quote
Request curtain track wholesale or add-on pricing.
Tell us whether you need tracks only, or tracks supplied with Dairui custom curtains. We will help match the profile, runners, brackets, accessories, and packaging before sampling or bulk production.
Request Curtain Track Quote- Track-only wholesale or curtain-order add-on
- Straight, curved, hidden, telescopic, or electric track, or curtain rods
- Single or double track
- Wall-to-wall width or window width
- Curtain box depth and mounting surface
- Curtain fabric type, heading, weight, and fullness
- Quantity, destination, and packaging request
- For electric tracks: motor side and power/control method
